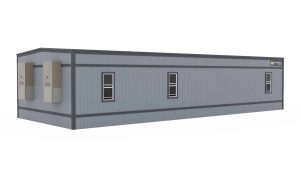

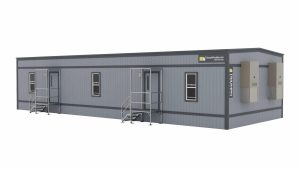

Double-Wide Modular Building

The 24′ x 64′ double-wide modular building is a go-to solution for many temporary facility needs.

Flexibility

The double-wide modular building deploys quickly and is the ultimate in flexibility. This model is often configured to accommodate four 144-square-foot office spaces, a large common work area, and one restroom. A flexible floor plan can be customized to meet a variety of needs.

Our mobile offices feature:

MEASUREMENTS

  • Length: 64’ Long, including hitch (60′ Box Size)
  • Width: 24′ Wide
  • Ceiling Height: 8′ High
  • 720 Sq. Feet

EXTERIOR FINISH

  • Smart Panel Wood Siding
  • I-beam frame
  • J-Rail Roof Edge Gutters
  • R-21 Insulation

INTERIOR FINISH

  • Luma Beige VCP
  • VCT White Tile Floors
  • Gypsum Ceiling
  • (4) Private Offices
  • (1) Restroom

RECOMMENDED

WINDOWS/DOORS

  • Double Insulated Vinyl Windows
  • (8) Horizontal Slider Windows
  • (2) Stell Doors with Standard Locks

ELECTRIC

  • 110/240V Single Phase
  • 60 Amp Breaker
  • LED Ceiling Lights
  • LED Exterior Lights
  • Motion Sensor Light Switches
  • USB Port Outlets

HEATING/COOLING

  • (2) 3-Ton Wall Mounted Bard
  • Thermostat – 7-Day Programmable
  • HVAC – 11 EER Rating

Door, window, and partition location may vary depending on the manufacturer.

Floor Plans

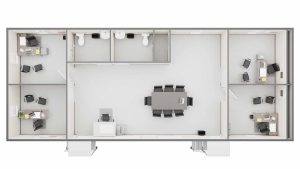

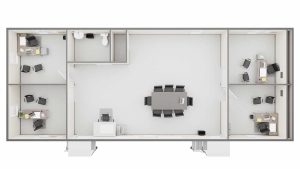

24' x 64' modular building with Office, Planning, and Conference Room Solutions

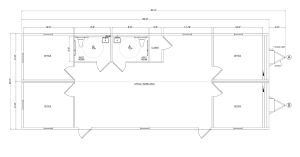

Standard 24' x 64' Modular Building with 1 Bathroom

Pictured: Business Office Solutions (2), Express Office Solutions (2), Planning Solutions, Business Conference Room Solutions, and Business Entry Solutions (2)
